Causeway 16-18" Open Solid Fuel Boiler Booster Door For Open Solid Fuel Fire Boilers

Causeway Fire Door — Efficient Conversion for Open Solid-Fuel Fireplaces

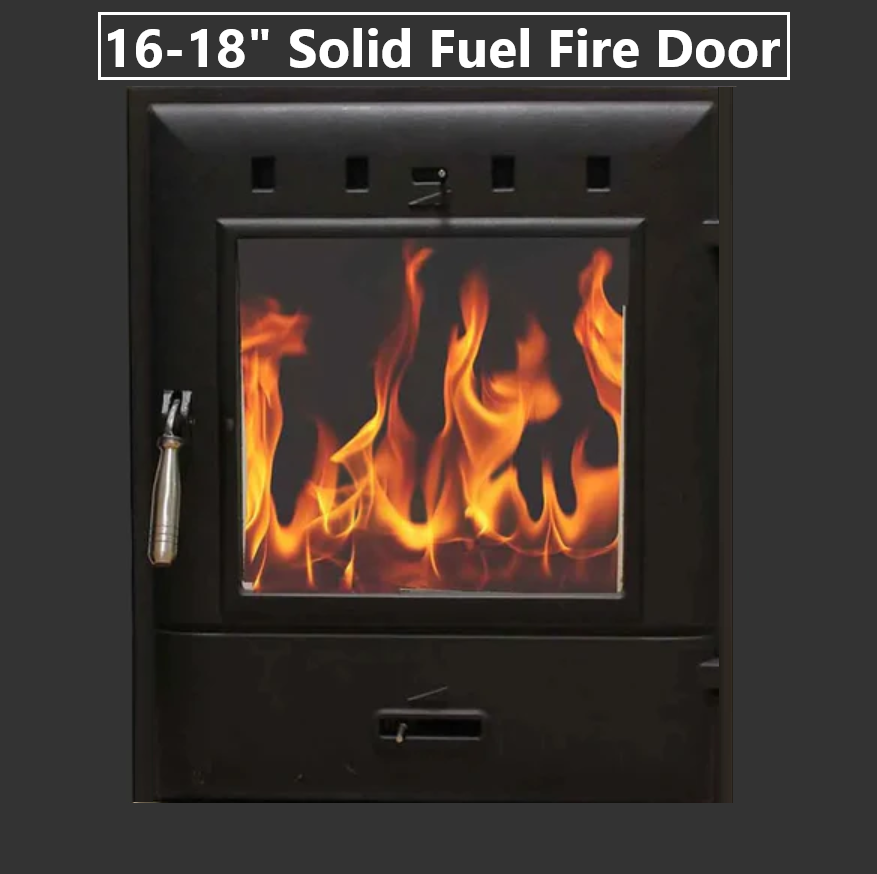

The 16-18" Causeway Solid Fuel Fire Door

Simply put it is an Efficient Conversion Kit for any Open Solid-Fuel Fireplace or Boiler as it Holds the heat in the room for the home owner and it also prevent a high air change of any open chimney in a room.

The Causeway Fire Door is a retrofit firefront designed to transform an existing open solid fuel fireplace (with a back boiler) into a closed combustion fire system. By fitting this fire door into the opening of your existing fireplace, you gain improved heat control, greater fuel efficiency, and reduced heat loss up the chimney — breathing new life into traditional solid-fuel back boiler fires.
Heat Design™

What It Is

• Product: Causeway Fire Door
• Open Coal Fire Soild Fuel Boiler Booster Door
• Brand: Heat Design
• Type: Firefront / Fire Door for solid fuel fireplaces with back boilers
• Suitable for: Open fireplaces with back boilers only
• Typical Fireplace Opening: Fits most 16″ or 18″ openings—so it’s compatible with a wide range of existing installations.

• Cast Iron Door with Steel Moutning frames

Key Features & Benefits

Below are the core features that make the Causeway Fire Door a strong upgrade option — all drawn from manufacturer and seller specifications:

Improved Efficiency

Burn Control: Converts an open fire into a closed system, allowing much better control of the burn rate.

Up to ~40% More Efficient: Installing the door can increase the efficiency of your back boiler system — meaning more of your fuel’s heat goes to heating your home and water, not up the chimney.
Heat Design™

Built-In Airwash System

Airwash Technology: Designed to channel airflow across the inside surface of the glass, helping keep it clearer for a better view of the fire while improving combustion.

Heat Retention & Cost Savings

Stops Heat Loss: When the fire isn’t lit, the closed door helps prevent heat escaping up the chimney — saving energy and reducing waste.

Extends Useful Heat: Converts energy that would otherwise escape into warmth circulating in the room.

 Easy Installation & Practical Design

Retrofit Fit: Easy to install into most existing fireplaces with back boilers — no major rebuild required.

Included Grate & Baffle: Supplied with an extension grate and fixed baffle plate to assist combustion and improve boiler efficiency.

📏 Dimensions & Technical Info

Here are the main dimensions as provided by Heat Design and reseller sites:

Overall Size (approximate):
→ Width: 492 mm
→ Height: 598 mm
→ Depth: 177 mm

Note: Dimensions may be subject to change without notice and should be verified with official specifications or by your supplier before purchase.
Hughes Fireplaces & Stoves in Wexford

Typical Fireplace Opening:

Suits most 16″ or 18″ openings.
Heat Design™

📌 Who It’s For

The Causeway Fire Door is ideal if you:

Have an open solid fuel fireplace with a back boiler and want to improve efficiency.
Heat Design™

Want better heat control, less energy waste, and a safer, cleaner burning fire.
Heat Design™

Are keeping your existing fireplace surround and hearth but want a performance upgrade.
Heat Design™

📍 Installation & Use Notes

Only suitable for fireplaces with back boilers — it’s not designed to fit firebacks or fireplaces without boilers.
DG Stoves & Fireplaces

Proper installation should be done by a competent fitter familiar with solid fuel appliances and building regulations in your area.

Make sure your chimney and flue system are in sound condition and swept before use.
