CDA ECH Series Range of Chimney Style Extractor Hood

The CDA ECH series offers a range of chimney extractor hoods designed to combine modern aesthetics with efficient performance, ensuring a fresh and inviting kitchen environment. Available in black and stainless steel finishes, these models cater to various kitchen sizes and styles.

Common Features Across the ECH Series:

Three-Speed Settings: Adjust the extraction rate to suit your cooking needs with three selectable speeds, ensuring optimal ventilation for various cooking intensities.

Push Button Controls: User-friendly push buttons provide straightforward operation, allowing effortless adjustments to fan speeds and lighting.

LED Lighting: Integrated LED lights offer bright and energy-efficient illumination of your cooking area, enhancing visibility and creating an inviting ambiance.

Ducted or Recirculating Installation: Designed for versatility, these hoods support both ducted and recirculating setups, accommodating different kitchen layouts and ventilation requirements.

Aluminium Grease Filters: Equipped with durable aluminium grease filters, the ECH series effectively captures grease particles, contributing to cleaner air and simplifying maintenance.

Notable Models in the ECH Series:

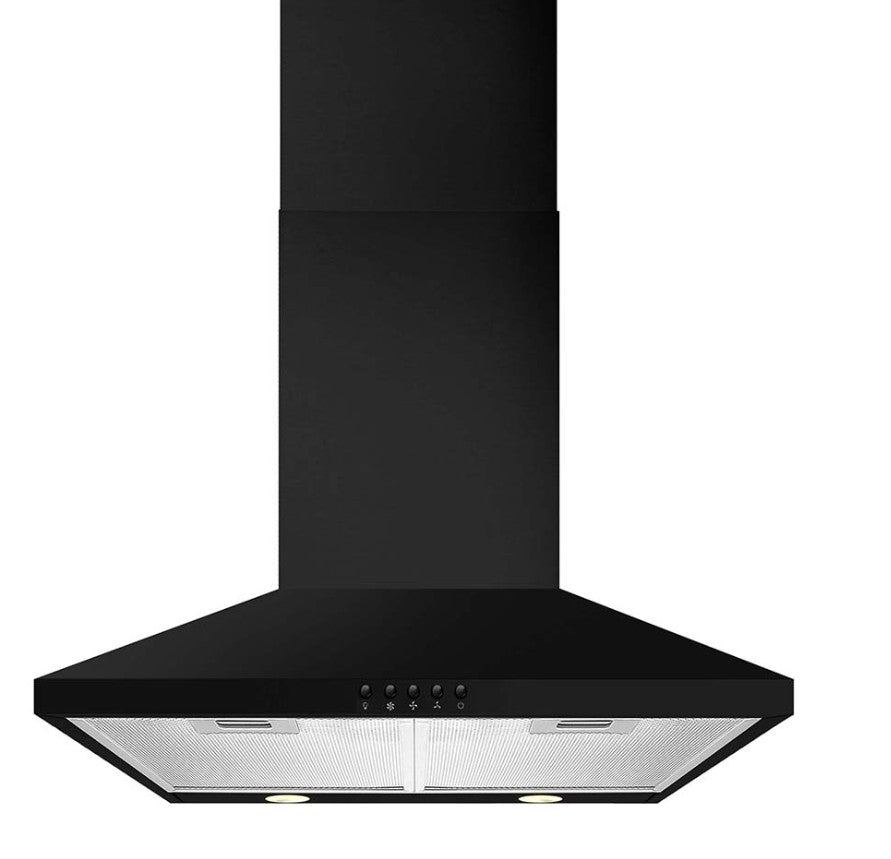

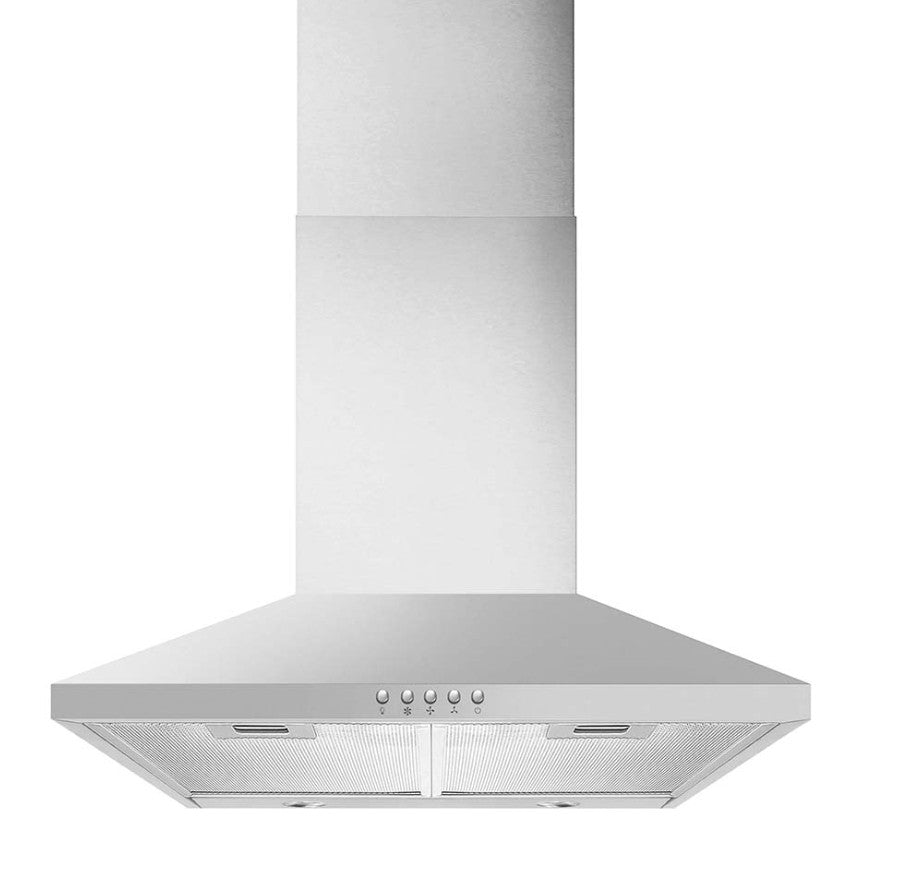

ECH63 (60cm Chimney Extractor):

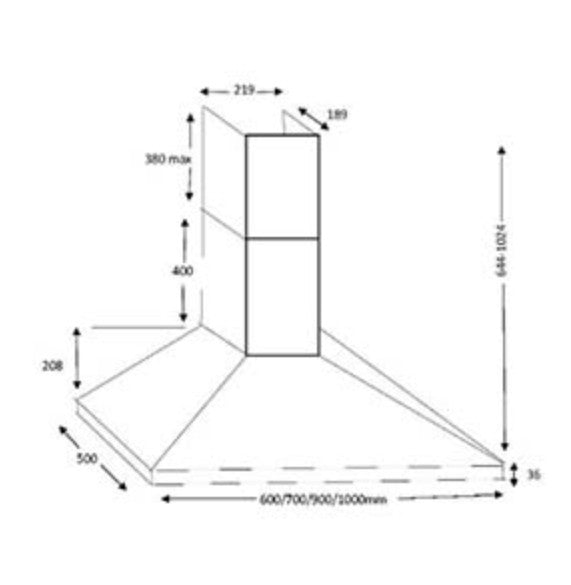

Dimensions: Height: 644-1024mm, Width: 600mm, Depth: 500mm.
Extraction Rates:
First speed: 280 m³/hr
Second speed: 340 m³/hr
Third speed: 475 m³/hr
Noise Levels:
First speed: 53 dBA
Second speed: 60 dBA
Third speed: 64 dBA
Energy Rating: C
Lighting: 2 x 4W LED lights
Finishes Available: Stainless steel, Black
Additional Features: Height-adjustable chimney and twin fan motor for enhanced extraction efficiency.

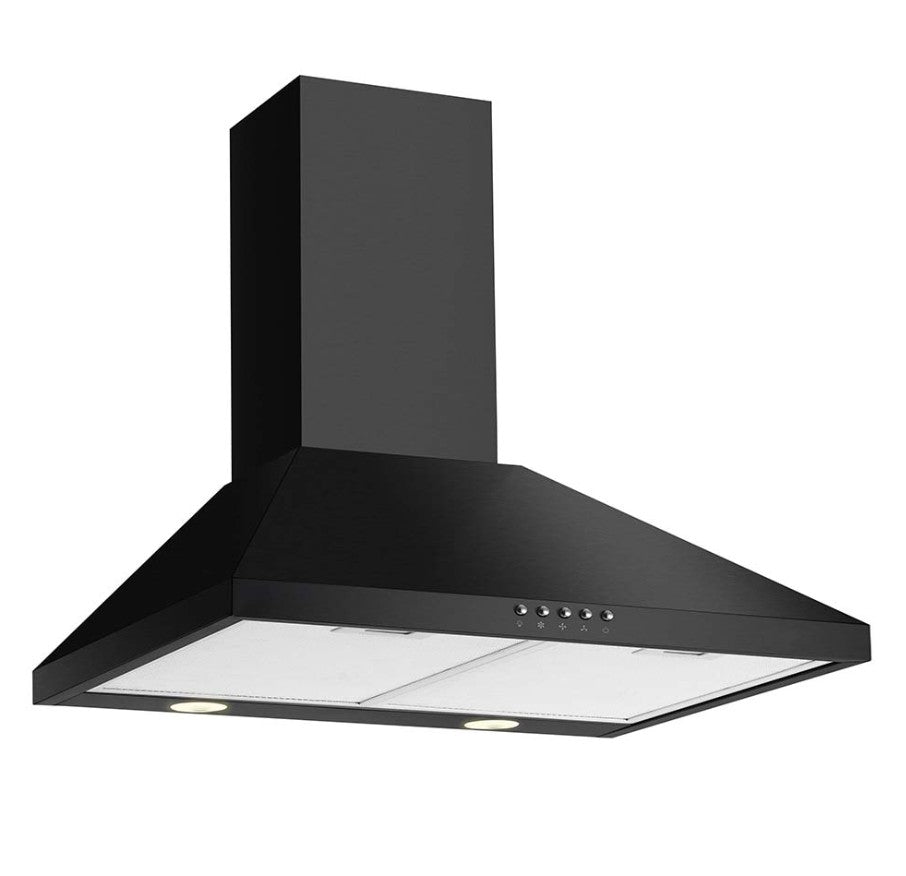

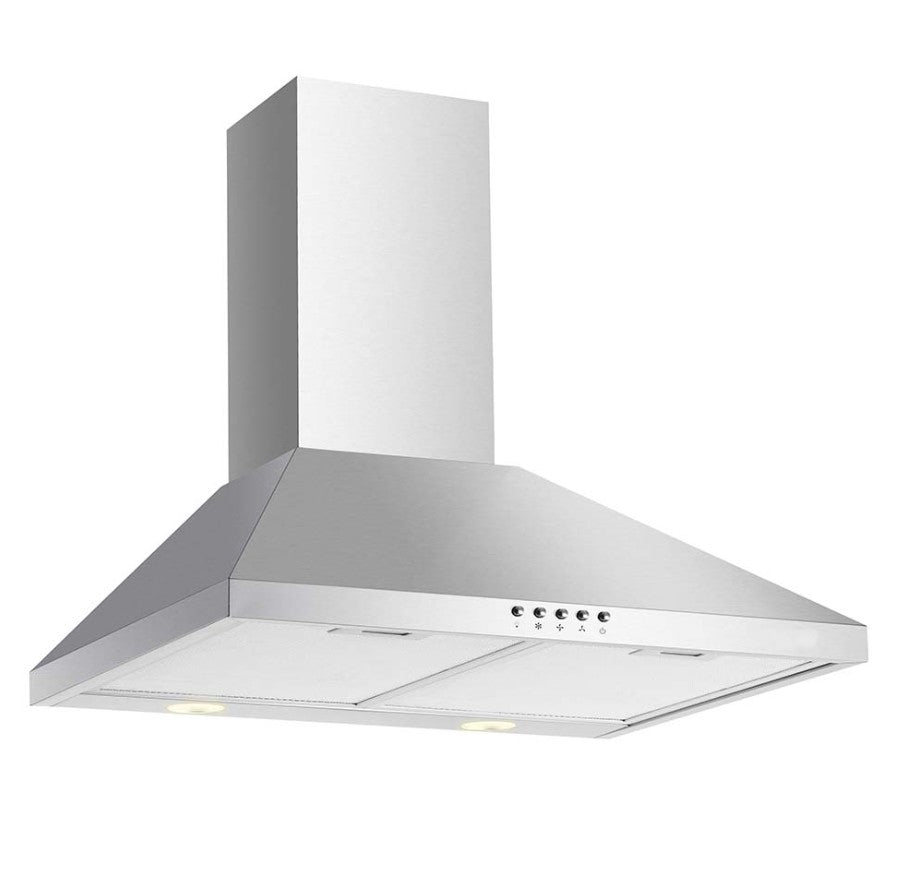

ECH73 (70cm Chimney Extractor):

Dimensions: Height: 644-1024mm, Width: 700mm, Depth: 500mm.
Extraction Rates:
First speed: 289 m³/hr
Second speed: 360 m³/hr
Third speed: 498 m³/hr
Noise Levels:
First speed: 53 dBA
Second speed: 60 dBA
Third speed: 64 dBA
Energy Rating: C
Lighting: 2 x LED lights
Finishes Available: Stainless steel, Black
Additional Features: Height-adjustable chimney for flexible installation.

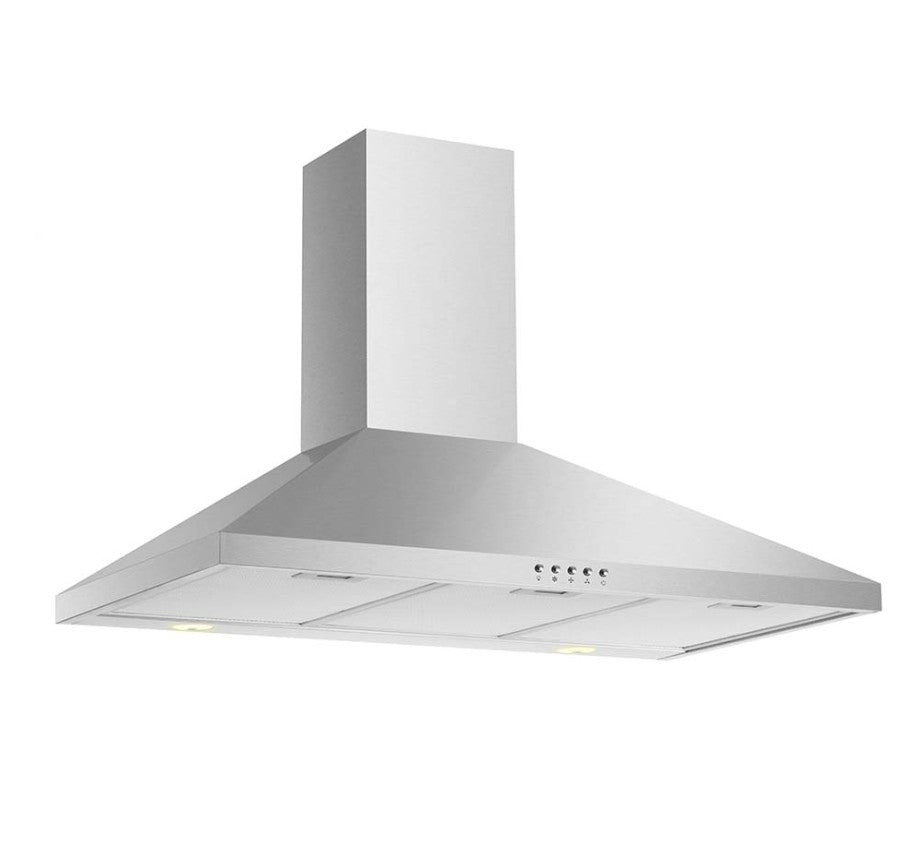

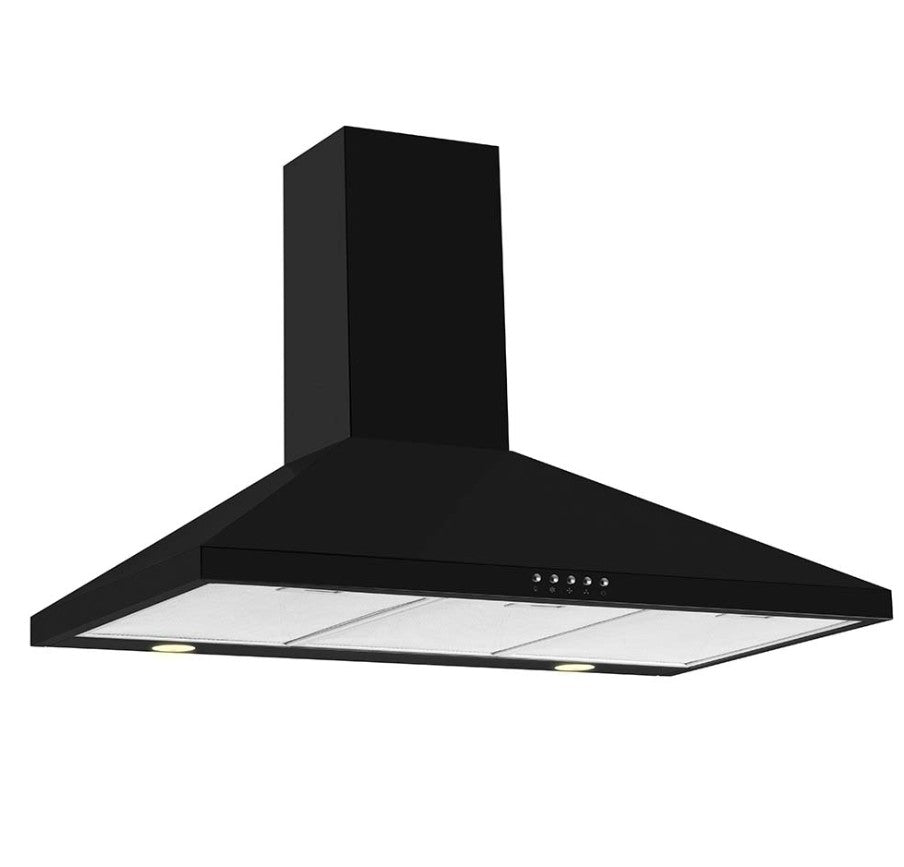

ECH93 (90cm Chimney Extractor):

Dimensions: Height: 644-1024mm, Width: 900mm, Depth: 500mm.
Extraction Rates:
First speed: 270 m³/hr
Second speed: 340 m³/hr
Third speed: 468 m³/hr
Noise Levels:
First speed: 53 dBA
Second speed: 60 dBA
Third speed: 64 dBA
Energy Rating: C
Lighting: 2 x 4W LED lights
Finishes Available: Stainless steel, Black
Additional Features: Height-adjustable chimney and twin fan motor for enhanced extraction efficiency.

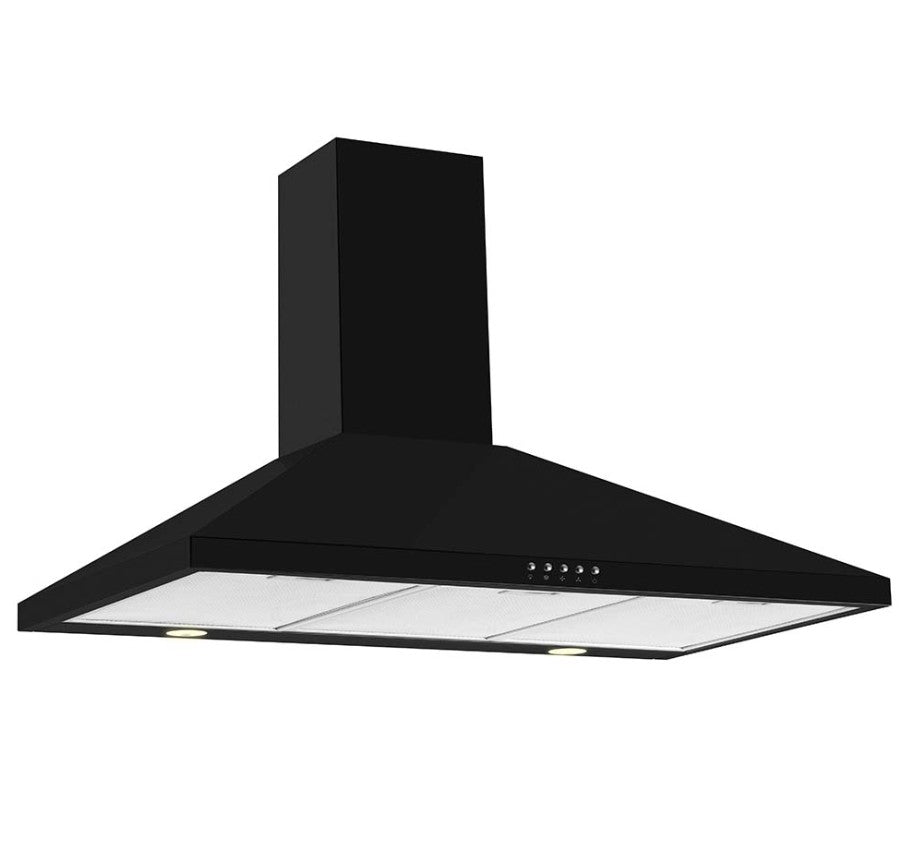

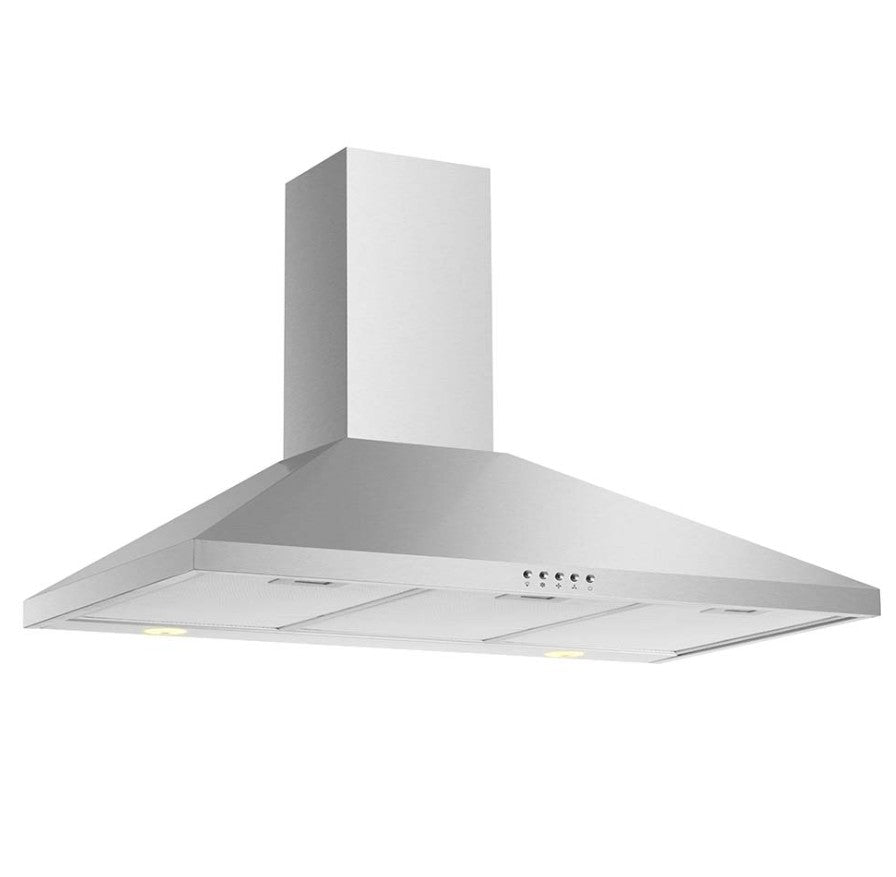

ECH103 (100cm Chimney Extractor):

Dimensions: Height: 644-1024mm, Width: 1000mm, Depth: 500mm.
Extraction Rates:
First speed: 291 m³/hr
Second speed: 369 m³/hr
Third speed: 498 m³/hr
Noise Levels:
First speed: 53 dBA
Second speed: 62 dBA
Third speed: 64 dBA
Energy Rating: C
Lighting: 2 x 1.5W LED lights
Finishes Available: Stainless steel, Black
Additional Features: Height-adjustable chimney for flexible installation.

Benefits of the ECH Series:

Sleek Design: The contemporary aesthetics of the ECH series make these hoods a focal point in any kitchen, seamlessly blending with modern décor.

Efficient Ventilation: With robust extraction rates, the ECH hoods effectively remove cooking odors and steam, maintaining a fresh kitchen environment.

Quiet Operation: Despite their powerful performance, these hoods operate at relatively low noise levels, ensuring a peaceful cooking experience.

Energy Efficiency: Equipped with energy-efficient LED lighting and motors, the ECH series balances high performance with economical energy consumption.

The CDA ECH series embodies a harmonious blend of style, functionality, and efficiency, making it a valuable addition to any contemporary kitchen.
