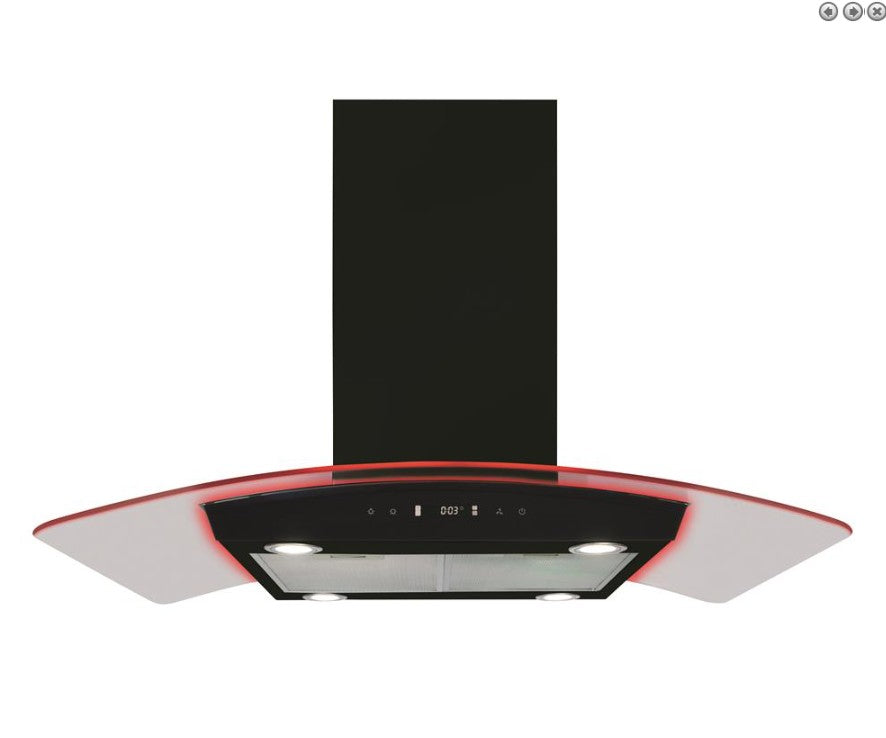

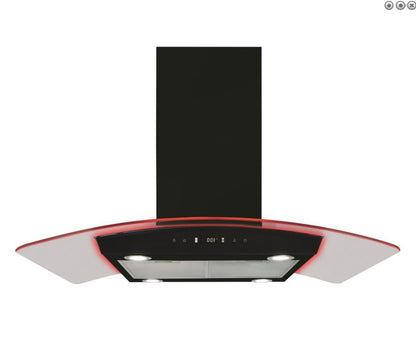

CDA EKPK90 Island Series Curved Glass Extractor hood with Led Edge Mood Lighting R-G-B

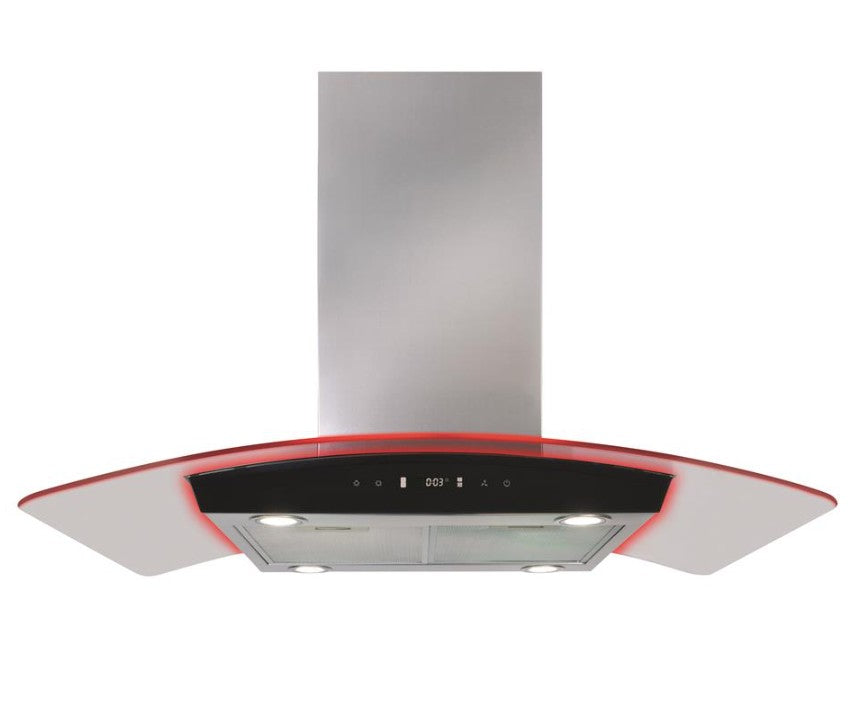

​The CDA EKPK90 series offers a sophisticated island extractor hood designed to serve as a focal point in contemporary kitchens. Available in stainless steel, this model combines aesthetic appeal with practical functionality.​
Key Features:

Curved Glass Design: The EKPK90 features a striking curved glass canopy that adds a touch of elegance to any kitchen island. ​

Three-Speed Settings: Users can select from three extraction speeds to effectively manage varying levels of cooking fumes and odors. ​
CDA

Push Button Control: The extractor is equipped with user-friendly push button controls for straightforward operation. ​

LED Lighting: Four integrated LED lights provide optimal illumination of the cooking area, enhancing visibility during meal preparation. ​

Ducted or Recirculating Installation: This model supports both ducted and recirculating setups, offering flexibility to suit different kitchen configurations. ​

Aluminium Grease Filters: Equipped with durable aluminium grease filters, the extractor efficiently captures grease particles, contributing to cleaner kitchen air and simplifying maintenance. ​

Technical Specifications:

Extraction Rates:

First Speed: 224 m³/hr​
Second Speed: 322 m³/hr​
Third Speed: 387 m³/hr​
Noise Levels:

First Speed: 50 dBA​
Second Speed: 56 dBA​
Riley James Ltd
Third Speed: 61 dBA​
Energy Rating: D​

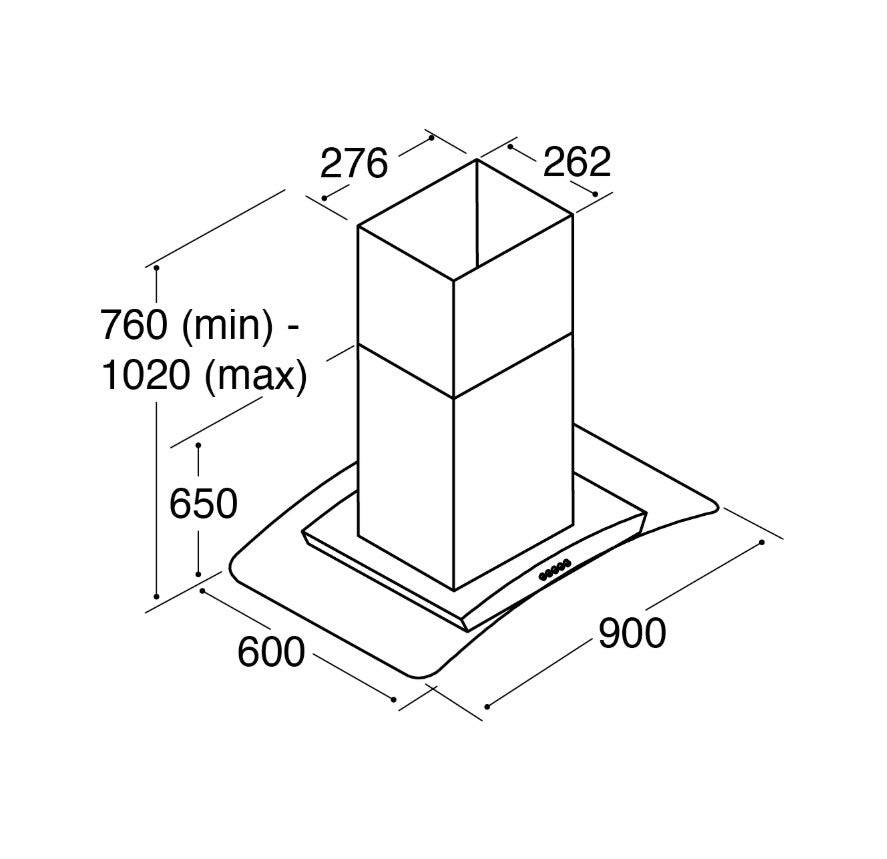

Dimensions:

Width: 900 mm​
Depth: 600 mm​
Height: Adjustable between 760 mm and 1020 mm​
Installation Requirements:

Minimum Height Over Gas Hobs: 700 mm​
Minimum Height Over Electric Hobs: 600 mm​
Outlet Diameter: 120 mm or 150 mm (recommended to use 150 mm ducting to minimize noise levels) ​

Optional Accessories:

Ducting Kits: Compatible with AED51/53/54 (120 mm) or AED61/63/64 (150 mm) ducting kits for ducted installations.​

Charcoal Filters: For recirculating installations, the extractor is compatible with CHA25 charcoal

Benefits:

Elegant Design: The curved glass canopy and stainless steel finish create a modern and stylish centerpiece for any kitchen island.​

Efficient Ventilation: With a maximum extraction rate of 387 m³/hr, the EKPK90 effectively removes cooking odors and steam, maintaining a fresh kitchen environment.​

User-Friendly Operation: The push button controls and multiple speed settings allow for easy and precise adjustments to ventilation intensity.​

Enhanced Illumination: The four LED lights ensure the cooking area is well-lit, improving visibility and adding a contemporary touch to the kitchen ambiance.​

The CDA EKPK90 island extractor hood combines modern design with practical features, making it an excellent choice for those seeking both style and functionality in their kitchen appliances.
