Gazco Logic HE Balanced Flue Log Effect Gas Fire with Winchester Frame

Gazco Logic HE Balanced Flue Log Effect Gas Fire with Winchester Frame

• Vogue Frame
• Up to 86% Gas Fire Efficiency
• Up to 3.2kW Gas Heat Output
• Flue Type: Balanced Flue Gas
• 4kW Gas Heat Input
• Slide Control System as standard

Gazco Logic HE Balanced Flue Coal Effect Gas Fire with Vogue Frame

The new Logic HE is a glass-fronted, high efficiency fire that is (86%) providing up to 3.2kW of comforting, controllable radiant and convection heat.
It has been specifically designed for installation where no Chimney is available.
The Balance Flue works by Natural Convection, and is completely Room-Sealed. There is also no requirement for additional ventilation.

The Vogue frame has a contemporary style stove effect for modern fireplaces, or wall mounted installations.

Gazco Logic HE Specification:
Safety Flame Supervision Device (FSD)
Airwatch System
Type of Heat: Radiant & Convection
Heating Efficiency: 86%
Heat Input High: 4 kilowatts
Heat Output High: 3.2 kilowatts

Fuel Bed Options:
Moulded Logs

Control Options:
Slide Control or Remote Control

Installation requirements:
Outside Wall free of windows, doors, and air vents

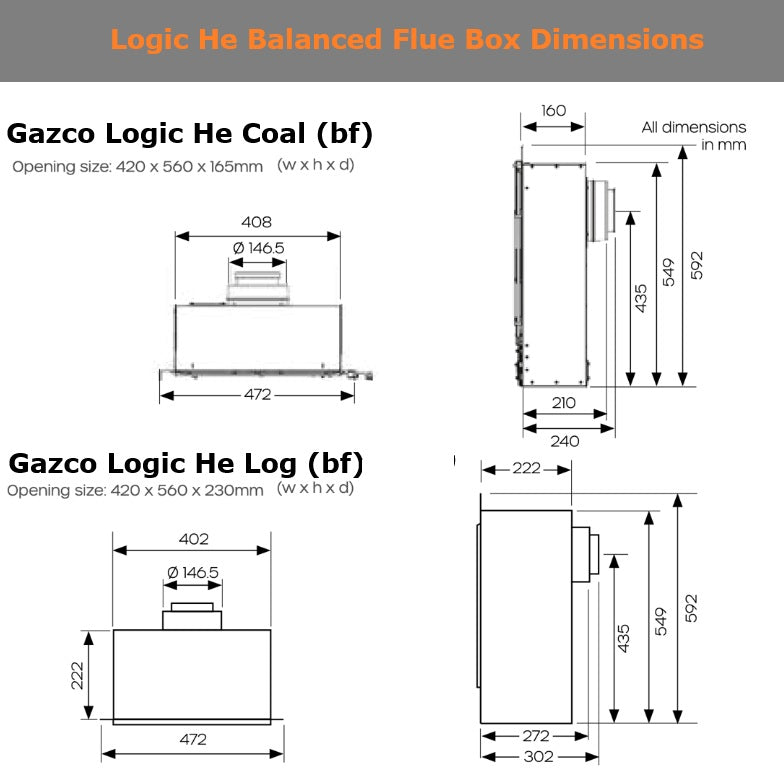

Wall & Recess Sizes:
Flue Length: 88 mm (min), 506 mm (max)
Fire Depth: 232 mm

Flue Route/Type:
Rear Exit Horizontal Terminal (pictured in image area)

As a Passive House Gas Fireplace - passive home fireplace - this appliance will result in a higher BER rating in your Irish home.
