The new Logic HE is a glass-fronted, high efficiency fire (86%) providing up to 3.2kW of comforting, controllable radiant and convection heat. It has been specifically designed for installation where no Chimney is available. The Balance Flue works by Natural Convection, and is completely Room-Sealed. There is also NO requirement for additional Ventilation.

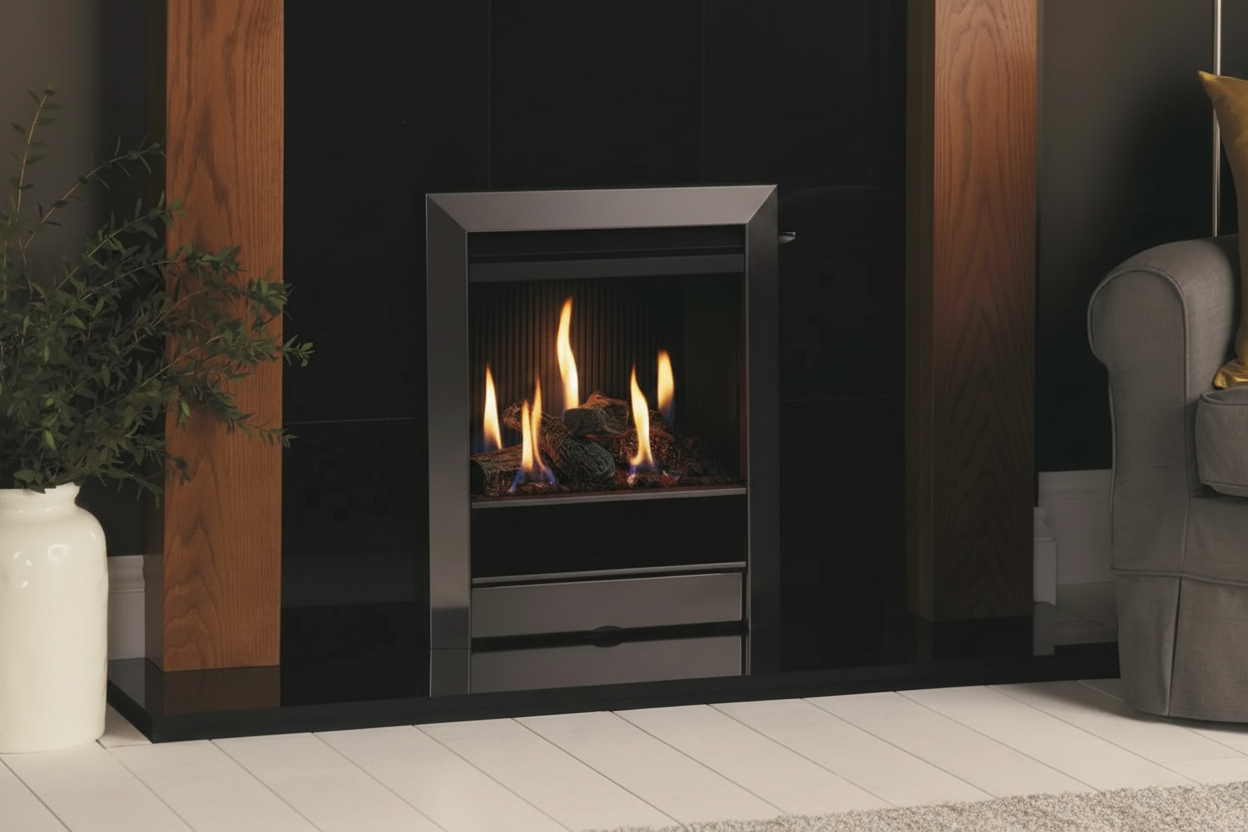

The Tempo frame has a modern style frame for modern fireplaces.
Gazco Logic HE Specification:
Safety Flame Supervision Device (FSD),
Airwatch System
Type of Heat: Radiant & Convection
Heating Efficiency: 86%
Heat Input High: 4 kW
Heat Output High: 3.4 kW
Gazco Logic HE Log Control Type:
Slide Control, or Remote Control
Colour Options:
Matt Black, Brass, Chrome, or Brushed Steel
Installation requirements:
Outside wall free of windows, doors, and air vents.
Wall & Recess Sizes:
Flue length: 88 mm (min), 506 mm (max)
Fire-box depth: 232 mm
Flue Route/Type:Rear Exit Horizontal Terminal (pictured below)
